Fully supported NAS Servers
IFDNRG have been providing and managing FreeBSD/ZFS based servers for over 20 years.
TrueNAS Core (based on FreeBSD with ZFS) offers superb NAS options such as:
- dynamically expandable disk pools,
- disk redundancy,
- on disk LZ4 compression
- incremental snapshots
- and much more.
With our hosting experience we are well versed in setting up, managing and maintaining ZFS pools.
Most resellers of NAS boxes will likely not even know what ZFS stands for, let alone manage or optimise.
This means that we, more than most, can secure your data, manage disk pools proactively and replace disks safely as required.
NAS systems can be optimised for maximum storage or speed, (or a balance of the two). With fast PCI-e NVMe caches and 10G network cards these boxes are able to cope with 4K editing over the LAN.
Contact us for a chat about your requirements.
| 51TB | 112TB | 168TB | 336TB | |
| System/Board | Supermicro | Supermicro | Supermicro | Supermicro |
| Chassis | Rack/Tower | 2U Rack | 2U Rack | 4U Rack |
| NAS OS | TrueNAS Core | TrueNAS Core | TrueNAS Core | TrueNAS Core |
| CPU | EPYC 7232P 8 Core | EPYC 7252P 8 Core | EPYC 7252P 8 Core | EPYC 7252P 8 Core |
| RAM | 128GB ECC | 128GB ECC | 256GB ECC | 512GB ECC |
| 10G network | 1 x 10GB Port | 2 x 10GB Ports | 2 x 10GB Ports | 2 x 10GB Ports |
| Disks | 4 x 20TB SAS3 | 8 x 20TB SAS3 | 12 x 20TB SAS3 | 24 x 20TB SAS3 |
| Max Expandable to: | 102TB | 160TB | Ask us | Ask us |
| ARC (Cache) | 2TB PCI-e NVMe | 2TB PCI-e NVMe | 4TB PCI-e NVMe | 4TB PCI-e NVMe |
| Boot/OS | 1TB M2 SSD | 1TB M2 SSD | 2TB M2 SSD | 2TB M2 SSD |
| Snapshots | Yes | Yes | Yes | Yes |
| Next day Hardware warranty | 1 Yr | 1 Yr | 1 Yr | 1 Yr |
| Approx Cost (ex VAT) | £4,950.00 | £7,390.00 | £8,980.00 | £16,490.00 |
| Realtime Monitoring/Support | £495.00 pa | £495.00 pa | £495.00 pa | £495.00 pa |
Additional optional components such as 10G cards for client machines, 10G switches etc can be discussed
| 10G Switches | |
| Zyxel 3 x 10GB Copper | £250.00 inc VAT |
| Netgear 5x 10GB Copper | £350.00 inc VAT |
| TP Link 8x 10GB Copper | £350.00 inc VAT |
| Netgear 8x 10GB Copper | £550.00 inc VAT |
Please contact us to discuss specific requirements, the above are intended as base line examples.
Let's chat NAS VIEW DEDICATED WEB SERVERS
Support and remote monitoring

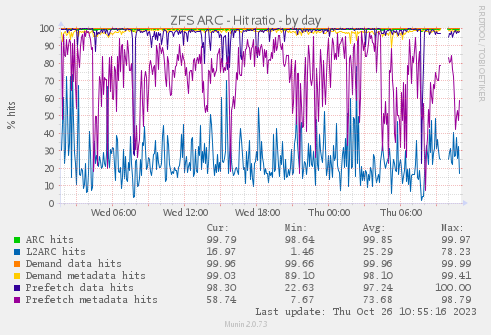

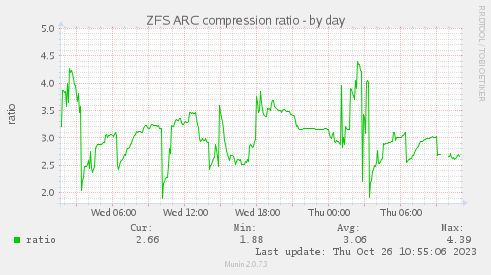

With a support contract, we can monitor your NAS system automatically, checking for pool issues, disk health and optimisation of caches remotely.
 |
 |
 |
 |
 |
|
Let's chat NAS VIEW DEDICATED WEB SERVERS
Fully monitored, patched and up to date servers
An IFDNRG managed server comes with full support, we'll keep the base operating system and the installed service software up to date daily.
We'll look after your box as if it were one of our own. We have developed our own custom management software which enables us to properly manage and maintain a large number of discrete systems, enabling our customers to focus on their customers.
To offer such level of service, typically we will offer FreeBSD on our dedicated servers.
